Description

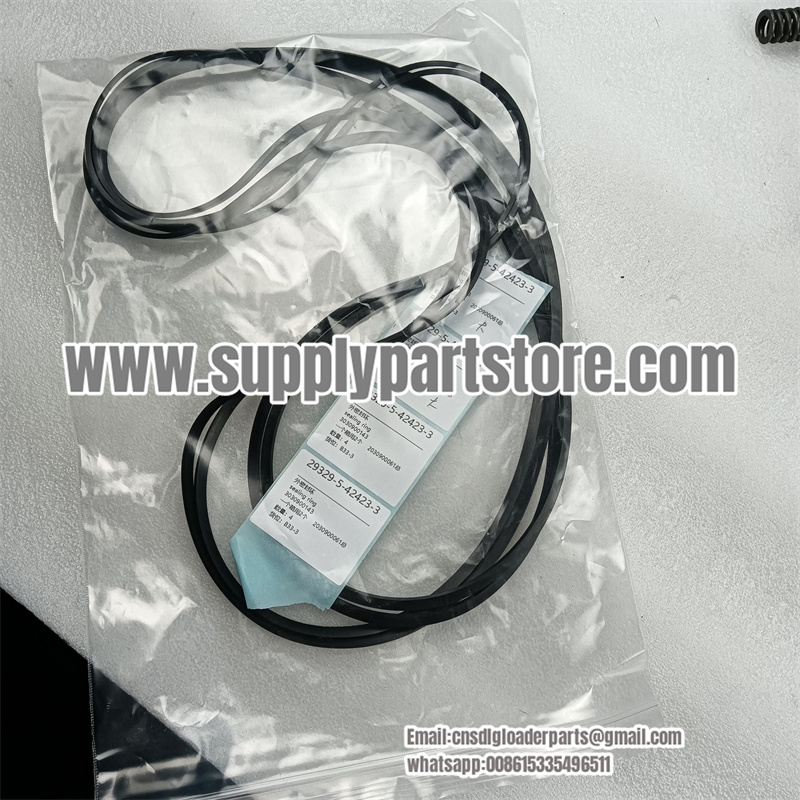

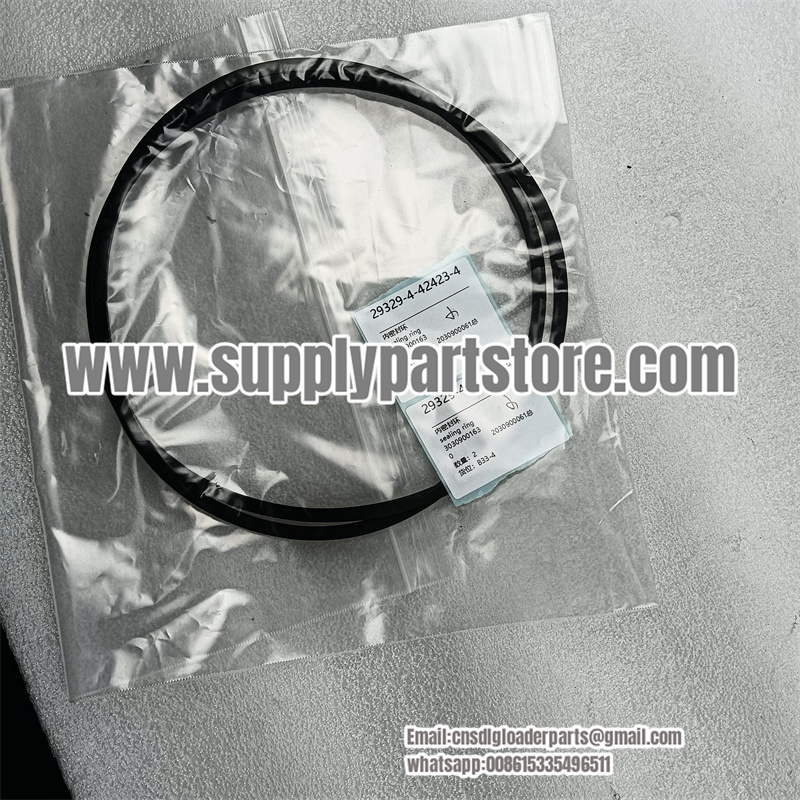

3030900143 3030900163 3030900113 Seal ring SDLG LG956 LG953 L956F L958F Loader transmission Parts









































































10 箱体 TRANSMISSION HOUSING 29050027231
20 螺栓GB21-M10*30EpZn-8.8 BOLT 4011000017
30 垫圈GB93-10-65Mn SPRING WASHER 4015000025
40 螺栓GB5783-M14*40-10.9 SCREW 4011001127
50 垫圈GB1230-14EpZn-45 PLAIN WASHER 4015000358
60 四轴总成(2) SHAFT 2030900019
70 中盖 COVER 29050022981
80 端盖 END PLATE 3030900091
90 密封垫 GASKET 29050011321
100 O形圈GB1235-20*2.4 O-RING 4030000011
110 螺塞 PLUG 3030900102
120 前输出法兰总成 FLANGE 29050026801
130 输出轴总成 Output shaft 29050027191
140 鼓式制动器总成 Brake assembly 29230009952
150 输出法兰总成 FLANGE 29050021541
160 销 PIN 29050023122
170 四轴总成（1） SHAFT 2030900026
180 三轴总成 SHAFT 2030900027
190 变矩器YJSW315-6C TORQUE CONVERTER 4110002521
200 滚动轴承GB276-6210N BALL BEARING 4021000019
210 挡圈GB894.1-90-65Mn RETAINING RING 4015000024
220 轴齿轮 DRIVE SHAFT GEAR 3030900094
230 密封垫 GASKET 29050023111
240 滚动轴承GB276-6012 BALL BEARING 4021000012
250 密封垫 Gasket 29050031761
260 螺栓GB16674-M10*55EpZn-10.9 BOLT 4011000855
270 变速泵LG03-BSB GEAR PUMP 4120000063
280 调整垫片 SHIM 29050020551
290 调整垫片 SHIM 29050020561
300 调整垫片 SHIM 29050020571
310 调整垫片 SHIM 29050020921
320 调整垫片 SHIM 29050025561
330 吊环螺钉GB825-M20EpZn-20 SCREW 4014000030
340 透气接头 NIPPLE 29050018031
350 螺塞R1/2 Plug 29050033171
360 螺栓GB21-M10*70EpZn-8.8 BOLT 4011000174
370 变速操纵阀LG03-BSF CONTROL VALVE 4120000064
380 密封垫 Gasket 29050037551
390 螺栓GB5783-M18*40EpZn-8.8 BOLT 4011000097
400 垫圈GB93-18-65Mn SPRING WASHER 4015000029
410 连接座 ATTACHMENT BRACKET 29050019321
420 滤油器总成 OIL FILTER 2030900065
430 垫圈GB93-8-65Mn SPRING WASHER 4015000036
440 螺栓GB5783-M8*30EpZn-8.8 BOLT 4011000107
450 压盖 COVER 3030900230
460 O形圈GB1235-32*3.1 O-RING 4030000013
470 接头体 NIPPLE 29050018471
480 环形磁铁LG03-CT70*32*14 MAGNET 4190000007
490 挡圈GB893.1-70-65Mn RETAINING RING 4015000013
500 垫片 SHIM 3030900232
510 螺栓GB5782-M10*80EpZn-10.9 SCREW 4011001013
520 转向泵驱动齿轮 DRIVE SHAFT GEAR 29050020161
530 滚动轴承GB276-6211 BALL BEARING 4021000020
540 轴承套 BEARING BUSHING 29050000071
550 圆柱堵塞 PLUG 3030900098
560 LG953变速箱标牌 Name plate 29050027801
570 铆钉GB827-3*5-BL2 RIVET 4019000012
580 变矩器总成YJSW315-6C Torque converter 29040011941
1 直接档受压盘 PRESSURE DISC 3030900103
2 滚动轴承GB276-6022 BALL BEARING 4021000015
3 直接档轴 SHAFT 3030900104
4 垫圈GB1230-12EpZn-45 WASHER 4015000288
5 螺栓 SCREW 3030900105
6 直接档主动片 FRICTION DISC 2030900020
7 直接档从动片 FRICTION DISC 3030900106
8 螺栓GB5783-M8*20-8.8 BOLT 4011000723
9 直接档活塞 PISTON 3030900107
10 中间输出齿轮 GEAR 3030900108
11 直接档油缸 CLUTCH CYLINDER 3030900109
12 销 PIN 3030900115
13 滚动轴承GB276-6204 BALL BEARING 4021000016
14 旋转油封 SEALING RING 3030900110
15 滚动轴承GB276-6312 BALL BEARING 4021000024
16 旋转油封 SEALING RING 3030900111
17 销 PIN 3030900112
18 调整垫片 SHIM 29050020931
19 调整垫片 SHIM 29050020511
20 调整垫片 SHIM 29050020501
21 调整垫片 SHIM 29050020491
22 密封环 SEALING RING 3030900113
23 碟形弹簧 SPRING RING 3030900114
24 垫圈GB93-8-65Mn SPRING WASHER 4015000036
25 螺母GB6170-M8-8 NUT 4013000162
26 挡圈GB894.1-65-65Mn RETAINING RING 4015000023
