Description

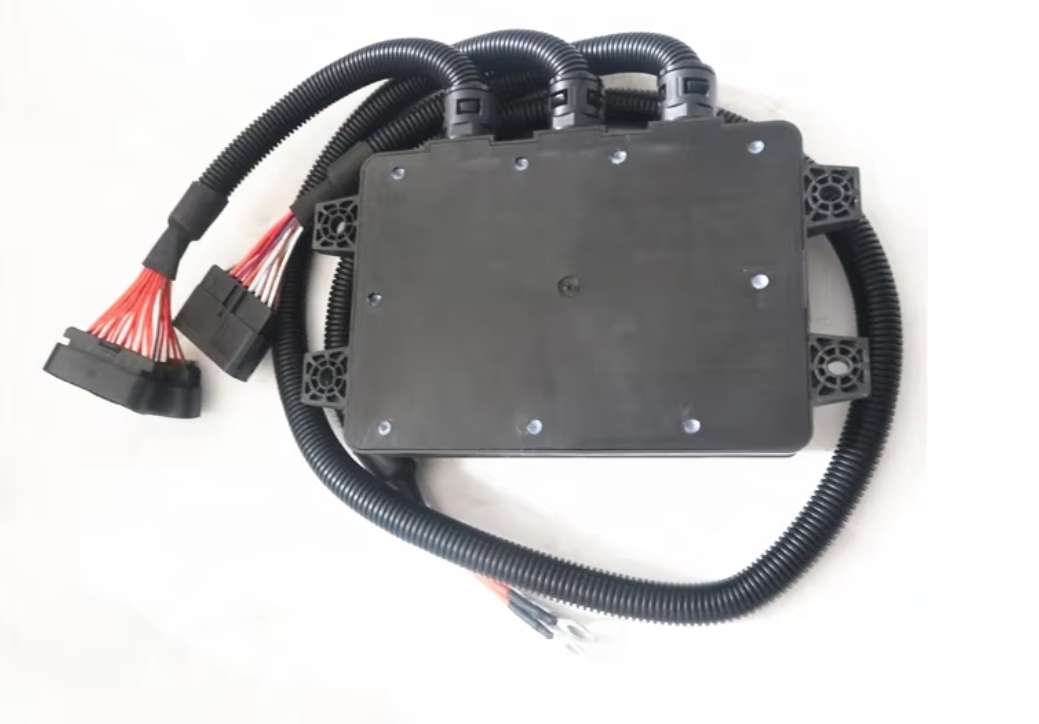

Control box XGZZJ0920 803677588 XCMG LW500KN LW300KN Loader Part
`

FRONT & REAR AXLE MAIN DRIVE ASSEMBL
1 4013000066 螺母GB889.2-M33*1.5-8 NUT GB889.2-M33*1.5-8 N 1
2 29070001121 垫圈 WASHER Y 1
3 29070001181 调整垫片 ADJUSTING SHIM Y 3
4 29070001191 调整垫片 ADJUSTING SHIM Y 4
5 29070001131 输入法兰 INPUT FLANGE Y 1
6 4011000067 螺栓GB5782-M14*55EpZn-8.8 BOLT GB5782-M14*55EpZn-8.8 N 7
7 4015000027 垫圈GB93-14-65Mn WASHER GB93-14-65Mn N 7
8 29070001161 垫密片 GASKET Y 1
9 4011000186 螺栓GB5782-M12*55EpZn-8.8 BOLT GB5782-M12*55EpZn-8.8 N 1
10 4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn N 1
11 29070001141 密封盖 SEALING COVER Y 1
12 4030000049 油封HG4-692-SG80*100*12 OIL SEAL HG4-692-SG80*100*12 Y 1
13 4021000030 滚动轴承GB297-31313 BEARING GB297-31313 Y 1
14 29070001171 轴承套 BEARING SEAT Y 1
15 29070000181 垫片 SPACER Y 2
16 29070001151 轴套 SHAFT SLEEVE Y 1
17 29070000191 垫片 SPACER Y 2
18 29070001201 调整垫片 ADJUSTING SHIM Y 5
19 29070000201 垫片 SPACER Y 3
20 4021000032 滚动轴承GB297-31314 BEARING GB297-31314 Y 1
21 29070000211 垫片 SPACER Y 3
22 29070000461 固定销 PIN Y 4
23 4021000036 滚动轴承GB297-32216 BEARING GB297-32216 Y 2
24 29070000351 调整螺母 ADJUSTING NUT Y 2
25 4016000124 销GB119.2-10u8*30 PIN GB119.2-10u8*30 N 2
26 29070001221 托架 CARRIER N 1
27 29070000311 锁紧片 LOCKING LEAF Y 1
28 4013000052 螺母GB6173-M27*2-05 NUT GB6173-M27*2-05 N 1
29 29070000301 止推螺栓 BOLT Y 1
30 29070000391 轴承座 CAGE N 2
31 29070000401 锁紧片 LOCKING LEAF Y 2
32 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 2
33 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 BOLT GB5786-M10*1*20EpZn-8.8 N 2
34 29070001301 垫圈 WASHER Y 4
35 4011000126 螺栓GB5786-M16*1.5*40EpZn-8.8 BOLT GB5786-M16*1.5*40EpZn-8.8 N 14
36 29070009521 螺栓 BOLT Y 4
37 29070001211 主动螺旋伞齿轮（左） SPIRAL BEVEL GEAR PINION(LEFT) N 1
38 4021000027 滚动轴承GB283-NUP2307 BEARING GB283-NUP2307 Y 1
39 4015000020 挡圈GB894.1-35-65Mn RETAINER RING GB894.1-35-65Mn N 1
40 29070000331 锥齿轮垫片 WASHER THRUST Y 4
41 29070000341 锥齿轮 GEAR PINION Y 4
42 29070009511 垫圈 WASHER N 20
43 4013000198 螺母GB6176-M16*1.5-10 NUT GB6176-M16*1.5-10 N 20
44 29070000431 差速器左壳 LEFT CASE DIFFERENTIAL MECHANISM N 1
45 29070000381 半轴齿轮垫片 HALF AXLE GEAR SPACER Y 2
46 29070000371 半轴齿轮 HALF AXLE GEAR Y 2
47 29070000411 十字轴 CROSS AXLE Y 1
48 29070000451 从动螺旋伞齿轮（右） LARGE SPRIAL BEVELGEAR (RIGHT) N 1
49 29070000361 差速器右壳 RIGHT CASE DIFFERENTIAL MECHANISM N 1
50 29070009491 螺栓 BOLT Y 8
51 29070009501 螺栓 BOLT Y 12
52 4015000098 垫圈GB93-16-65Mn WASHER GB93-16-65Mn N 14
53 7300000160 托架总成 CARRIER ASSEMBLY Y 1
54 2050900103 主动螺旋伞齿轮(左) GEAR Y 1
55 2050900079 差速器左右壳 LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM Y 1
